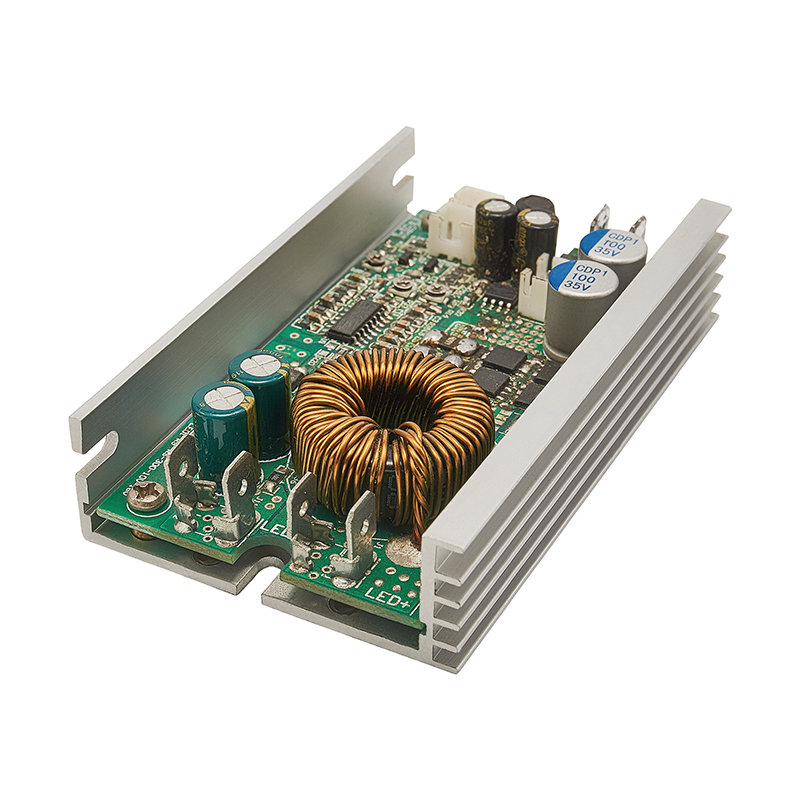

LED constant current drive

Release time：2021-06-13 14:19viewed：

·Constant current input 9V-60V, voltage can be customized, current range 1A-40A is optional.

·Dimming light: 0%-100%, duty cycle: 0-255

·Safety regulations and electromagnetic compatibility comply with UL 60950-1 CE .EN61347-1

·Dimming method: Pulse frequency system (PFM) type with PWM dimming.

·With over-voltage, under-voltage and short-circuit protection functions

·Output voltage adjustment range ---±10%

·Output overload protection---120%-160% rated output power, automatic recovery

·Working temperature: -10～+40℃ ·Storage temperature: -20～+60℃

·Safety standards: UL, c-UL, GS ·Cooling method: Forced air cooling

·MTBF: ≥20,000 Hours, MIL MIL-HDBK-217F(25℃)
